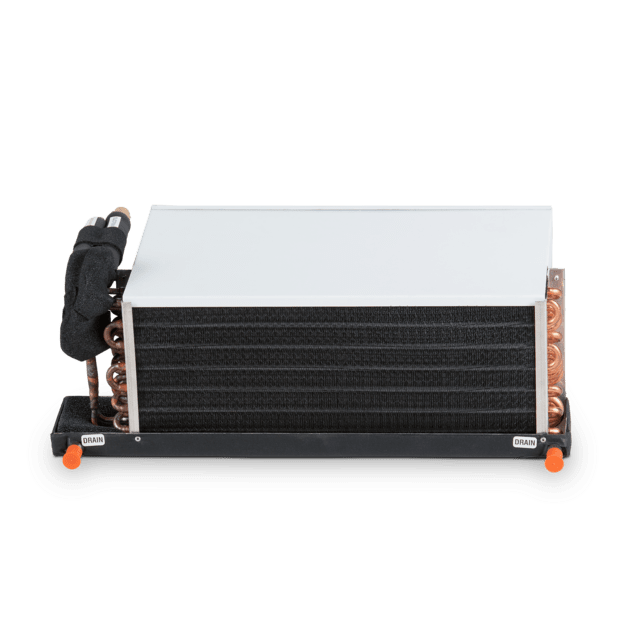

EDL16C

Art nr: 9108548547

Low-profile design at only 7.48 in. (190 mm) tall

High-efficiency, ductable dual blowers

Robust stainless steel construction for longer-life

Corrosion-resistant coating on the blower and housing increases service life

Four-row evaporator coil for excellent heat removal during low-fan speed conditions

SKU number

9108548547

Model

EVAPS EDL Series

Model on label

215311870

Product Description

Dimensions product depth, [mm]

445

Dimensions product height, [mm]

483

Dimensions product width, [mm]

622

Net weight, [kg]

16.78

Input voltage (AC), [V]

230

Input frequency, [Hz]

50/60

Required AC circuit protection min, [A]

1

Required AC circuit protection max, [A]

5

Cooling capacity (ISO 5151), [W]

16000

Current consumption min cooling, [A]

0.62

Current consumption max cooling, [A]

0.62

EAN-13

7315091239899

Dimensions parcel depth, [mm]

759.46

Dimensions parcel height, [mm]

469.90

Dimensions parcel width, [mm]

457.20

Parcel weight, [kg]

17.3

Dometic Fan Coils and Controls - Declaration of Conformity EMEA24

Declarations of Conformity

Download
