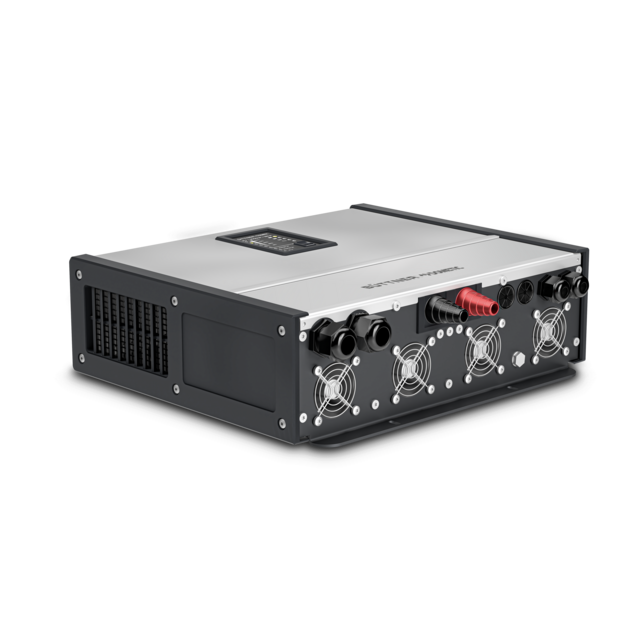

Dometic Büttner MT ICC3000SI-N
Specially developed for large motorhomes: With this compact inverter/charger combination you are prepared for any situation during your camping holiday. The compact unit combines a 3000-W sine wave inverter with a 120-A automatic charger. This means that you can easily operate high-wattage 230 V devices, even in unsecured parking spaces. And recharge the onboard battery at the same time.
Sine wave inverter 3000 W plus automatic charger 120 A
Integrated mains changeover – switches automatically to mains power as soon as it is available
PowerBoost function briefly recovers reinforcement from the onboard battery
Control unit for installation in the interior (remote control)
Compact combination of two devices – saves space onboard
Silent night mode programmable
High operational safety – overload and overheating protection
SKU number
9620000175
Model
MTICC3000SI-N/120A
Model on label
n/a
Scope of delivery
Inverter;Display,Battery temperature sensor,mounting material, Installation and operating manual
Product Description
Inverter with charger, 3000 W, 120 A, 12 V
Dimensions product depth, [mm]
370
Dimensions product height, [mm]
132
Dimensions product width, [mm]
431
Net weight, [kg]
20.38
Input voltage (AC), [V]
230
Input voltage (DC), [V]
12
Output voltage, [V]
230
Input frequency, [Hz]
50/60
IP class
IP21
Priority circuit (Integrated)
True
Continuous power 25°C, [W]
3000
Color
Black/Silver
Certificates
UKCACE
EAN-13
4260397962572
Dimensions parcel depth, [mm]
485
Dimensions parcel height, [mm]
220
Dimensions parcel width, [mm]
455
Parcel weight, [kg]
21.20
Dometic Büttner MT ICC 1600 SI-N, MT ICC 3000 SI-N - Installation and Operating Manual EMEA8
Installation and Operating Manual
Download
