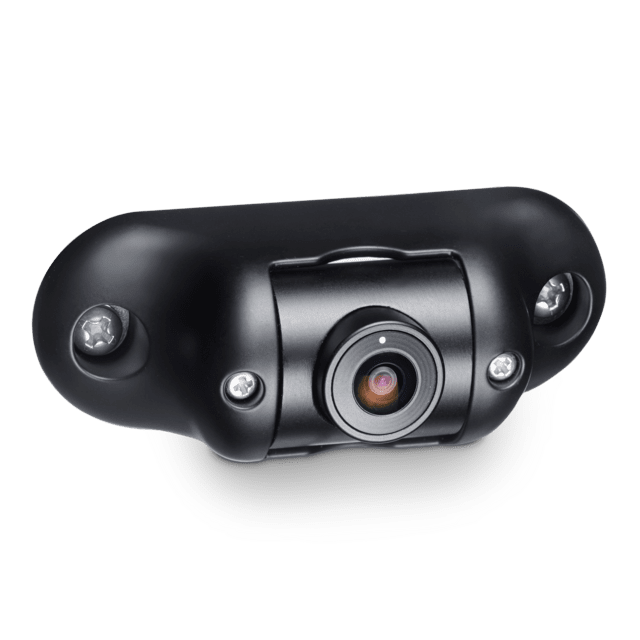

Dometic PerfectView CAM 29SX
Many panel vans, caravans and motorhomes lack a suitable mounting surface for a camera on the rear or side. Here is a smart alternative: this tiny cylinder camera is enclosed in a compact housing to be fastened on the top edge of the vehicle. With its configuration it is specially designed for the use as blind spot camera at the side of the vehicle. The 150° wide-angle lens can be vertically aligned for the best possible view.
Special version blind spot camera – ideal for turn assistant systems
Wide-angle lens with large picture angle (150° diagonal)
Waterproof (IP69K rated)
Colour cylinder camera (NTSC), 1/4" CMOS image sensor
Mirror function not preset by factory to fit to the side view application
High sensitivity to light for sharp, high-contrast images
Electronic brightness adjustment for consistently good image quality
SKU number
9600003570
Model
CAM29S
Model on label
CAM29S
Scope of delivery
CAM29S + 5 m system cable + fixing material + manual
Product Description
CMOS colour cylinder camera, black, PAL, 150° diagonal
Dimensions product depth, [mm]
29
Dimensions product height, [mm]
33
Dimensions product width, [mm]
76
Net weight, [kg]
0.04
Input voltage (DC), [V]
12
IP class
IP69K
Colour
Black
EAN-13
4015704265507
Dimensions parcel depth, [mm]
280
Dimensions parcel height, [mm]
110
Dimensions parcel width, [mm]
210
Parcel weight, [kg]
0.8
